Product Description

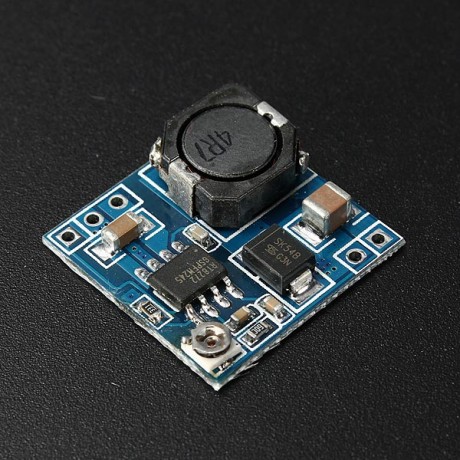

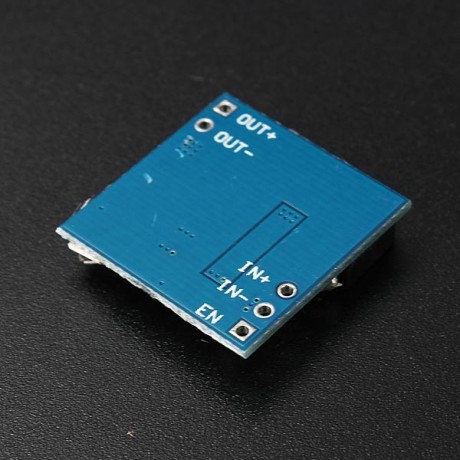

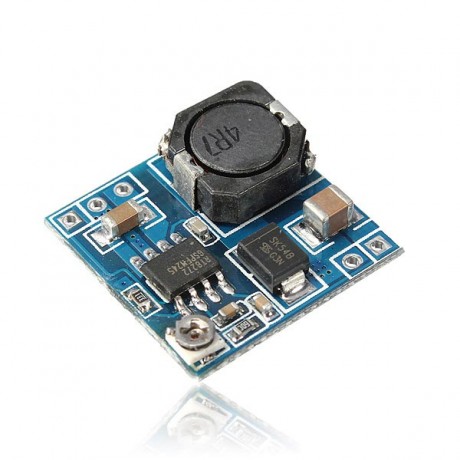

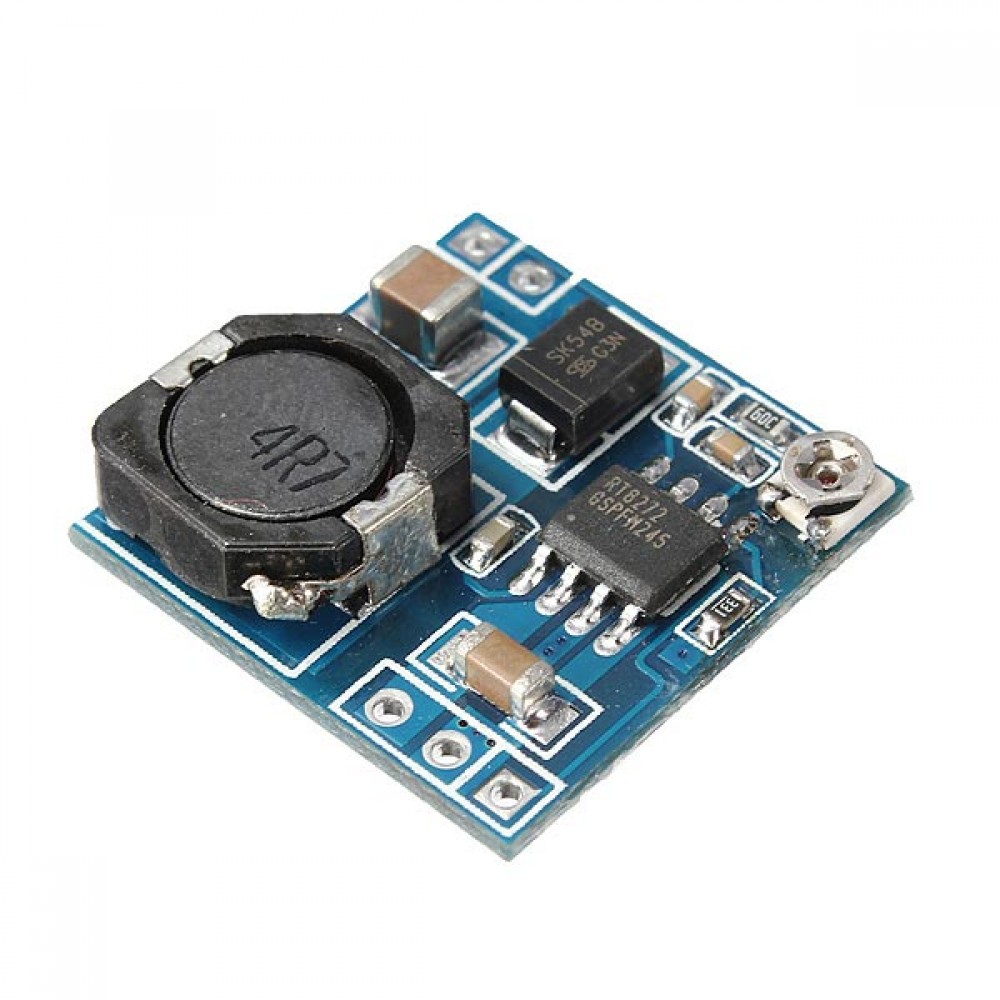

5Pcs 4.75V-24V To 0.92V-15V DC-DC Adjustable Power Supply Buck Converter Step Down Module

Feature:

This module with small volume, only 20 x 20 x 5 (dimensions), the weight less than 10 grams, very suitable for high current, small volume of applications, such as aviation model. This module uses import master control chip ,main control chip fixed 1.2 MHZ oscillator frequency, internal use low on resistance (Ron) MOS tube, overall stability and efficient work. This module has over temperature protection, over current protection function, can guarantee the security useof appliances and modules.

Specification:

Input voltage: 4.75V ~ 24V Output voltage 0.92V ~ 15V Working temperature: -40°C to +85°C The output ripple: 30mV (maximum) Load regulation: ±0.5 Voltage regulation: ±2.5 Output current: 2A (maximum) Conversion efficiency: 95 (the highest) Module properties: non-isolated step-down (BUCK) Size: 20 x 20 x 5 mm (a dime size)

Package included:

5 x Power supply buck converter step down module
